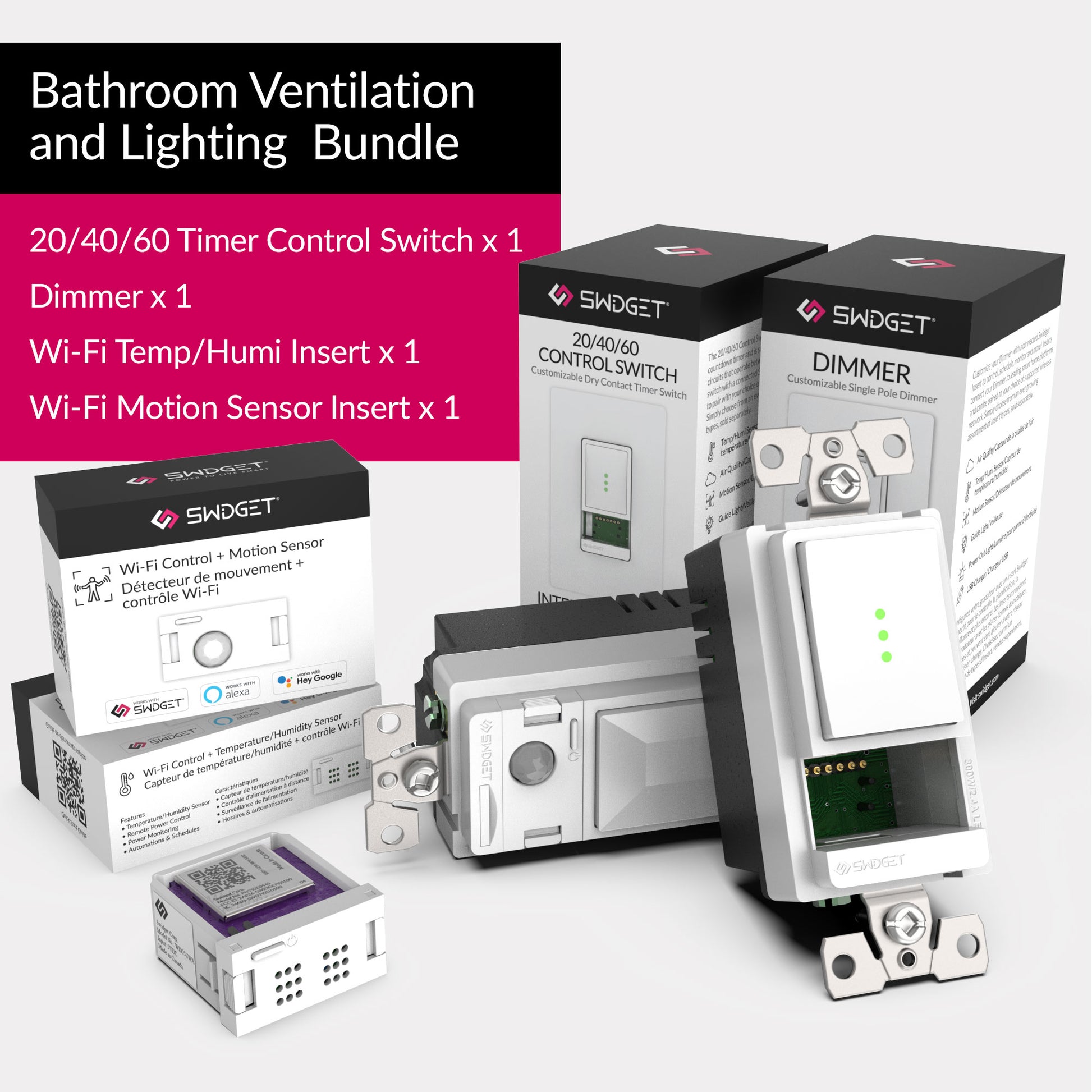

Bathroom Ventilation and Lighting Bundle
Install Once. Upgrade Forever.
Protect your family's health with the Swidget Bathroom Ventilation and Lighting Bundle. With the ability to automatically detect high humidity and control your existing bathroom fan, Swidget can reduce the moisture that contributes to mold growth and help keep your family healthy. With the Dimmer switch and motion sensor combination, you can adjust the dimmer setting to turn on at lowered levels during the night and avoid the discomfort of bright lights.
- Detects humidity to activate ventilation fan.
- Conserve energy through sensor-driven operation, or the built in countdown timer for manual operation.
- Programmable dimming and motion-triggered lighting.
Instructions
Product Data Sheets
Protect your family's health with the Swidget Bathroom Ventilation and Lighting Bundle. With the ability to automatically detect high humidity and control your existing bathroom fan, Swidget can reduce the moisture that contributes to mold growth and help keep your family healthy. With the Dimmer switch and motion sensor combination, you can adjust the dimmer setting to turn on at lowered levels during the night and avoid the discomfort of bright lights.
- Detects humidity to activate ventilation fan.
- Conserve energy through sensor-driven operation, or the built in countdown timer for manual operation.
- Programmable dimming and motion-triggered lighting.
Instructions
Product Data Sheets
| Product Name | Swidget 20-40-60 Control Switch |
| Product Number | S16008WA (W=white) |
| Input Power Rating | 125VAC, 5A |
| LED/CFL Load Rating | 300W |
| Incandescent Load Rating | 600W |
| Horsepower Load Rating | 0.3 HP |
| Wiring Type | Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded), Ground screw |
| Switch Configuration | Single pole, dry contact |
| Testing and Code Compliance | UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability | UL94 5VA |
| Environmental | Indoor installation only |
| Operating Temperature | 14F to 104F (-10C to 40C) |
| Insert Voltage Output | Nominal 5VDC (+/- 5%) |
| Insert DC Protection | CLASS 2 - Current limiting and thermal shutdown protection |
| Insert Current Output | Constant current maximum 2.0A |
| Product Name | Swidget Dimmer Switch |
| Product Number | SD3001WA (W=white) |
| Input Power Rating | 125VAC, 2.5A |
| LED/CFL Load Rating | 150W |
| Incandescent Load Rating | 300W |
| Wiring Type | Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded), Ground screw |
| Switch Configuration | Single (1p) |
| Testing and Code Compliance | UL1472/ UL1310, CSA C22.2 #184.1, #223 (Canada and US) |
| Compatibility | NEMA SSL 7A Compliant |
| Flammability | UL94 5VA |
| Environmental | Indoor installation only |
| Operating Temperature | 14F to 104F (-10C to 40C) |
| Insert Voltage Output | Nominal 5VDC (+/- 5%) |
| Insert DC Protection | CLASS 2 - Current limiting and thermal shutdown protection |
| Insert Current Output | Constant current maximum 2.0A |
| Product Name | Swidget Wi-Fi Control + Temperature and Humidity Insert |
| Product Number | WI005UWA (W=white) |
| Wireless Standard | Wi-Fi 802.11g |
| Wireless Band | 2.4 Ghz |

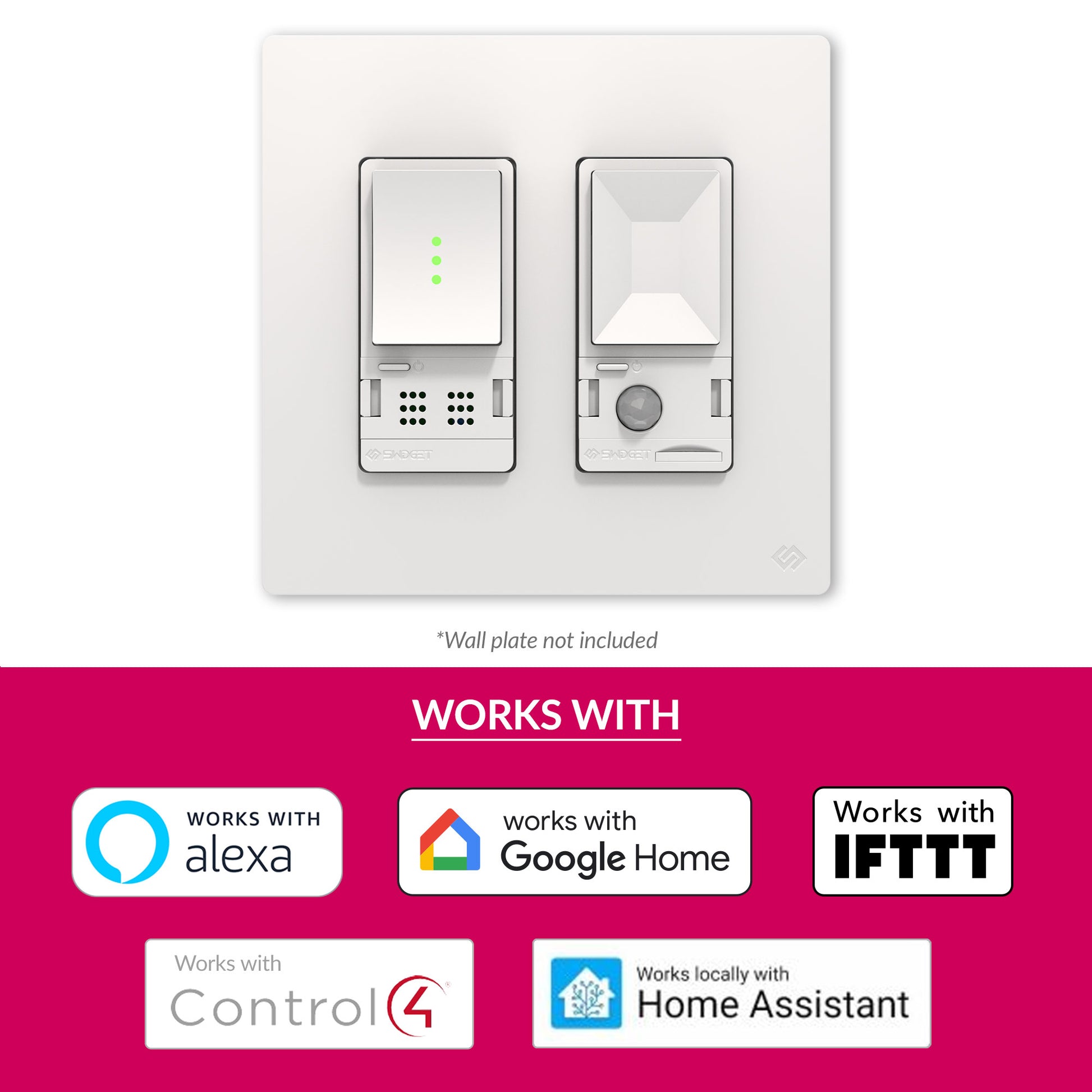

| Device Compatibility | Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades | OTA |
| Temperature Range | -10 - 40 °C (+/- 1 °C {after calibration}) |
| Relative Humidity Range | 0-100% {+/- 5% RH) |
| Environmental | Indoor installation only |
| Operating Temperature | 14F to 104F (-10 °C to 40 °C) |
| Product Name | Swidget Wi-Fi Control + Motion Insert |
| Product Number | WI004UWA (W=white) |
| Wireless Standard | Wi-Fi 802.11g |
| Wireless Band | 2.4 Ghz |
| Device Compatibility | Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades | OTA |
| Detection Range | 3m |
| Field of view | 120 degrees |
| Vacancy Timer | Adjustable between 1-60 minutes |
| Environmental | Indoor installation only |
| Operating Temperature | 14F to 104F (-10C to 40C) |
