Build your own 15A Outlet
Install Once. Upgrade Forever.

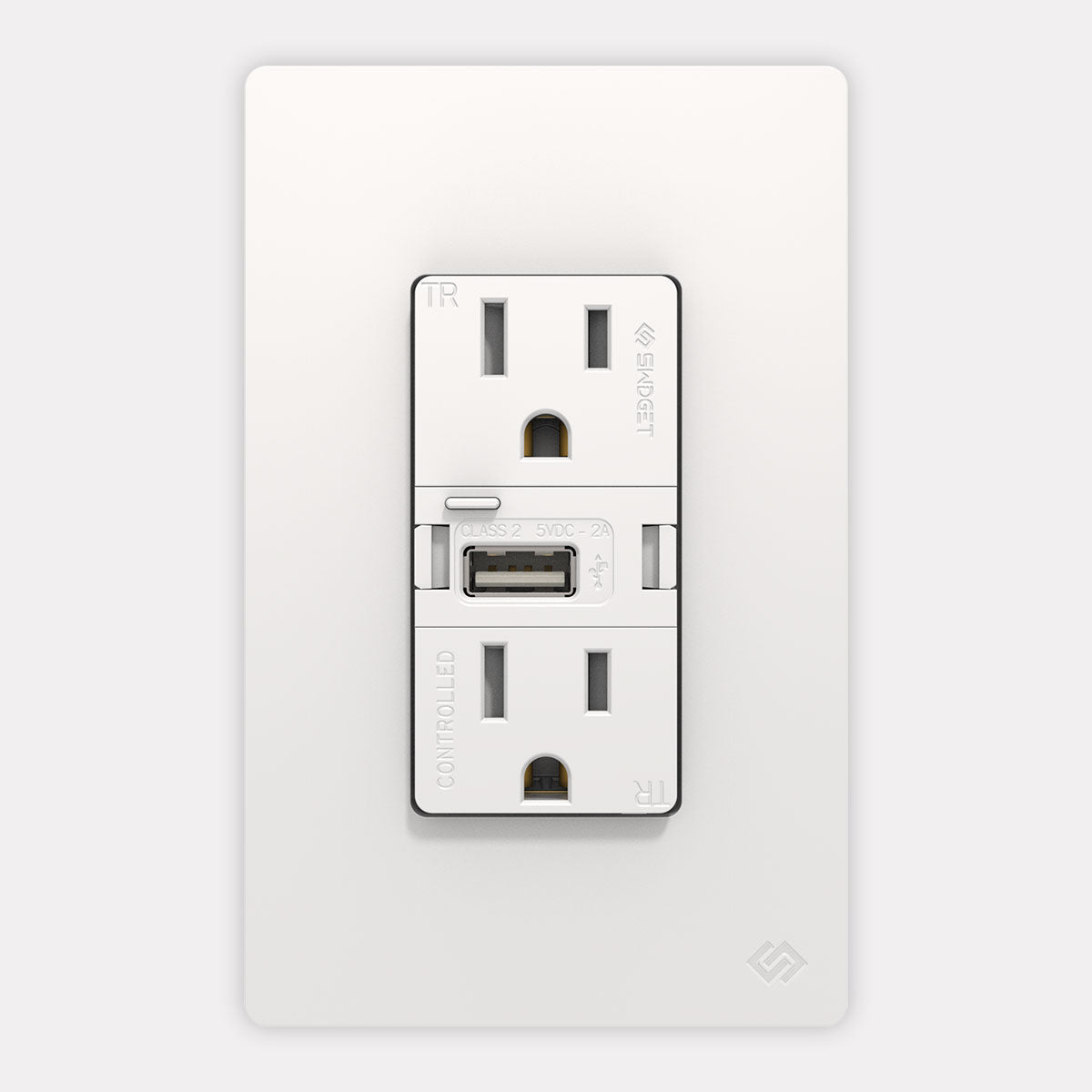

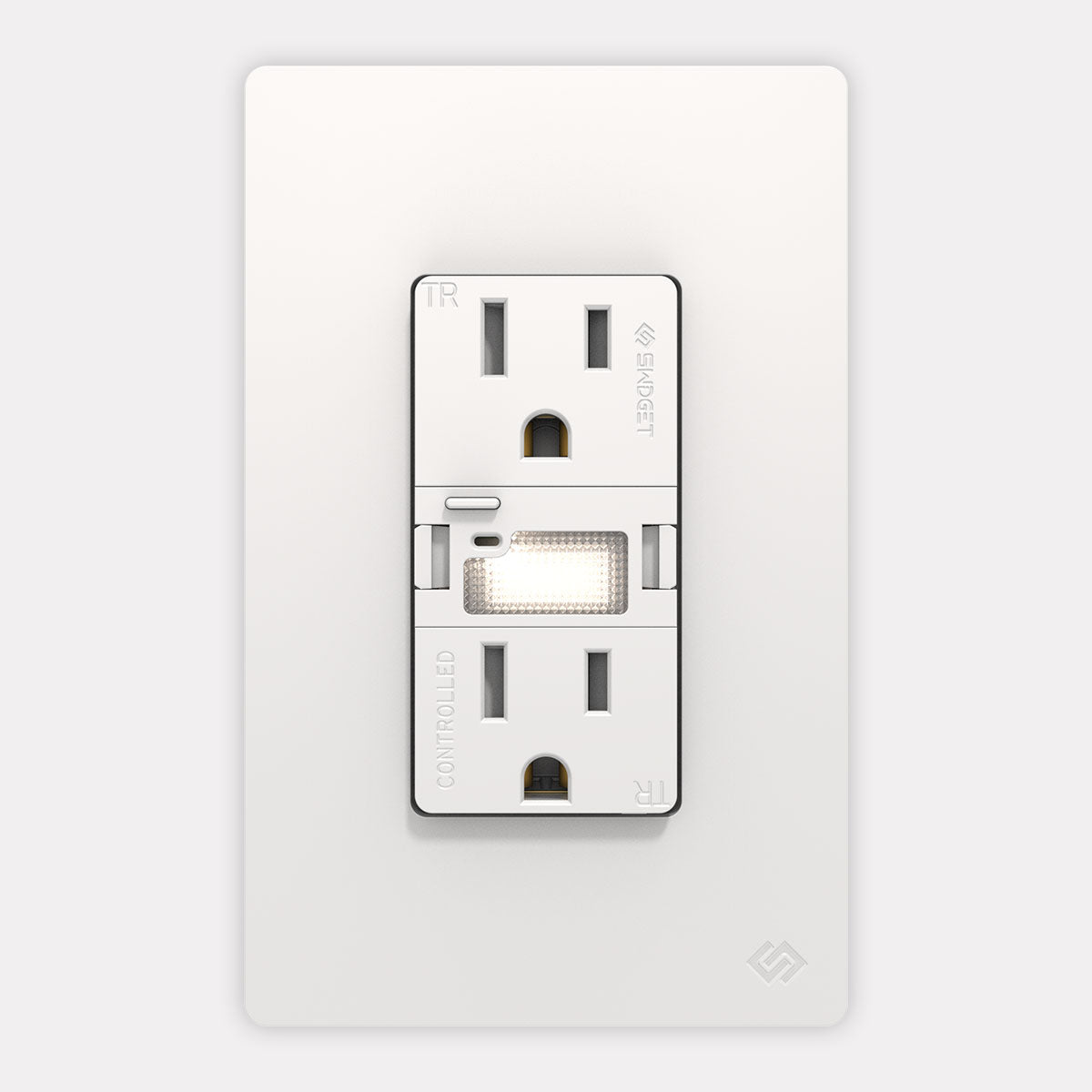

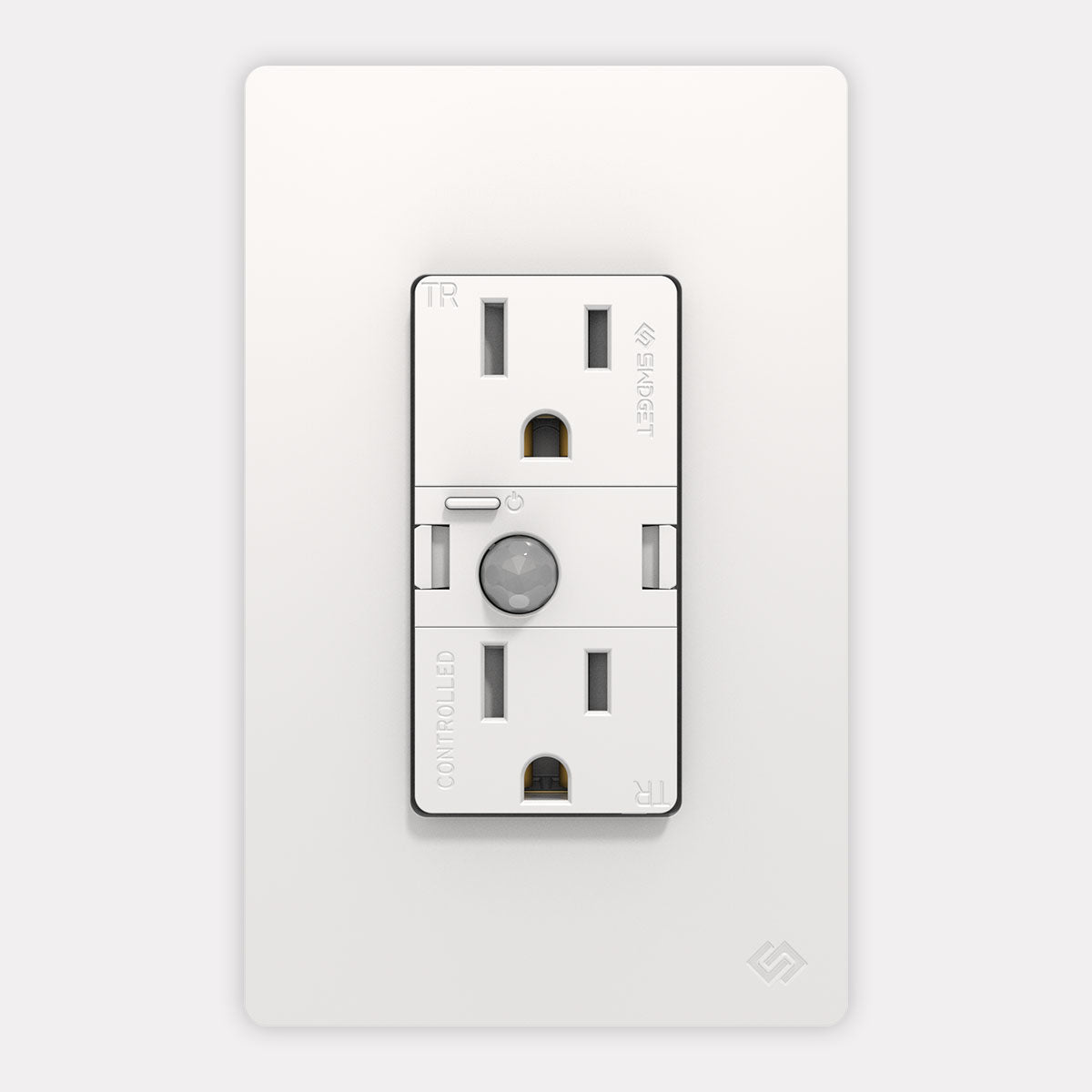

- Unprecedented Flexibility - Snap-in Swidget Inserts allow you to remote control, monitor, reconfigure and upgrade your tamper resistant Swidget 15 Amp outlet instantly with a wide range of functions and sensors.
- Receptacle Remote Control - Take control of any device powered by the lower receptacle through Swidget's app or 3rd party control system. Prevent phantom loads and integrate plugged-in devices into your smart home automations.
- Energy Monitoring - Real-time and independent power consumption reporting for each receptacle via Swidget's app can advise the user of power outages, appliance malfunctions or vampire energy.
- Future Proof - A unique modular approach separates IOT platform technology from the Swidget 15 Amp Outlet and drops it into the upgradable Swidget Insert, thereby providing the industry's only true future proof smart home solution.
Video Camera - Shipping in April 2024
InstructionsProduct Data Sheet

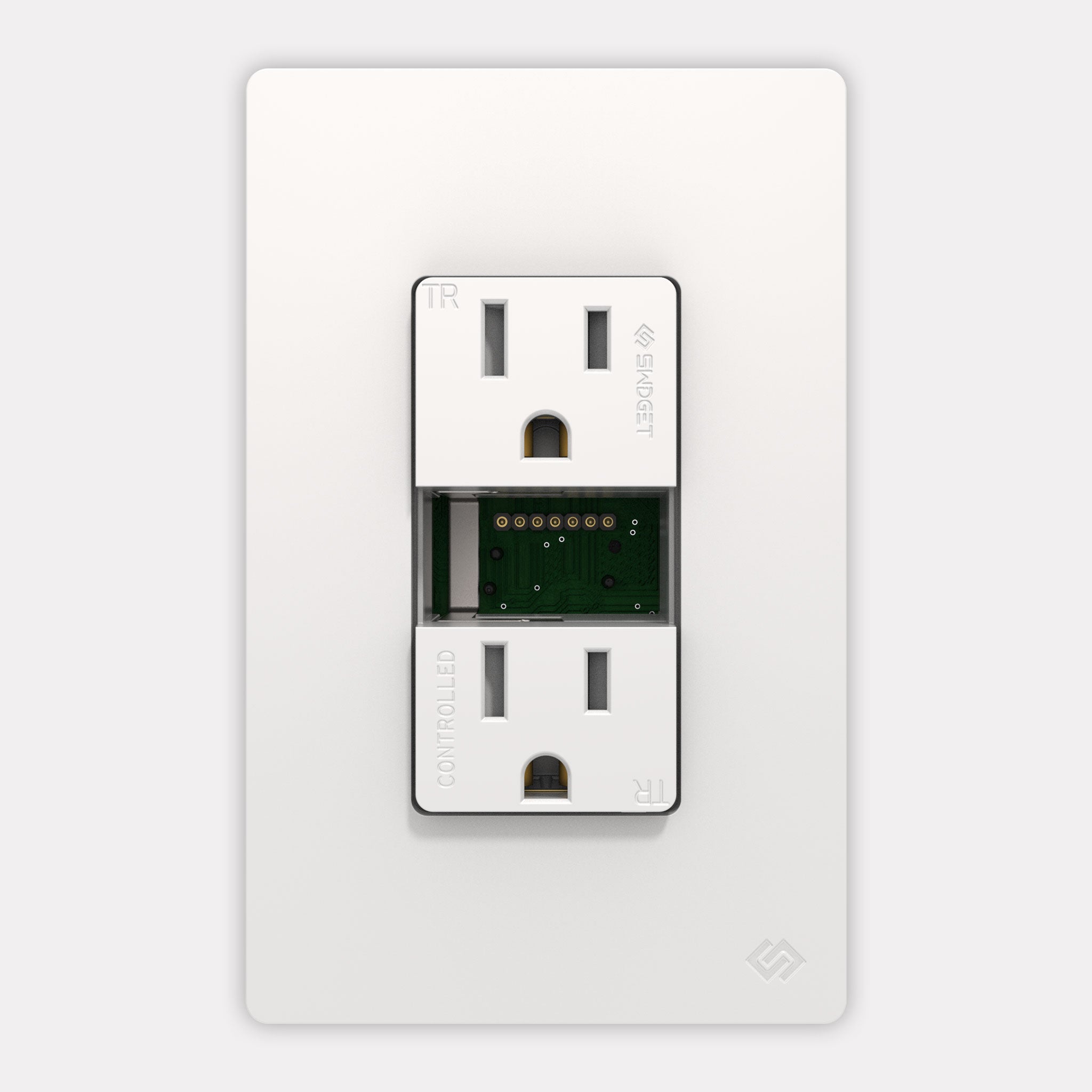

The smart-ready Swidget 15 Amp Outlet is installed just like any other standard power receptacle, utilizing the existing wiring in your home. Take full control of your outlet when paired with any one of our snap-in Swidget Inserts, enabling receptacle remote control and dual independent receptacle load power monitoring along with the selected insert's features and functions. With incredible flexibility and versatility, the Swidget 15 Amp Outlet is ideal for new construction and retrofit projects where the "Smart Function" can be added or changed at anytime after installation. Eliminate sensor clutter and customize your Smart Home to suit your lifestyle by choosing Swidget's unique modular futureproof solution.
- Unprecedented Flexibility - Snap-in Swidget Inserts allow you to remote control, monitor, reconfigure and upgrade your tamper resistant Swidget 15 Amp outlet instantly with a wide range of functions and sensors.
- Receptacle Remote Control - Take control of any device powered by the lower receptacle through Swidget's app or 3rd party control system. Prevent phantom loads and integrate plugged-in devices into your smart home automations.
- Energy Monitoring - Real-time and independent power consumption reporting for each receptacle via Swidget's app can advise the user of power outages, appliance malfunctions or vampire energy.
- Future Proof - A unique modular approach separates IOT platform technology from the Swidget 15 Amp Outlet and drops it into the upgradable Swidget Insert, thereby providing the industry's only true future proof smart home solution.
Video Camera - Shipping in April 2024
InstructionsProduct Data Sheet
The smart-ready Swidget 15 Amp Outlet is installed just like any other standard power receptacle, utilizing the existing wiring in your home. Take full control of your outlet when paired with any one of our snap-in Swidget Inserts, enabling receptacle remote control and dual independent receptacle load power monitoring along with the selected insert's features and functions. With incredible flexibility and versatility, the Swidget 15 Amp Outlet is ideal for new construction and retrofit projects where the "Smart Function" can be added or changed at anytime after installation. Eliminate sensor clutter and customize your Smart Home to suit your lifestyle by choosing Swidget's unique modular futureproof solution.
Swidget 15A Outlet |
Swidget 20A Outlet |
|
|---|---|---|
| Product Number | R1015SWA (W=white) | R1020SWA (W=white) |
| Input Power Rating | 125VAC, 15A | 125VAC, 20A |
| Outlet Receptacle Configuration | NEMA 5-15R | NEMA 5-20R |
| Resistive Load Rating | 1800W | 2400W |
| Motor Load Rating | 0.5HP | 1.0HP |
| Inductive Load Rating | 8A@125VAC (PF 0.4) | |
| Relay Mechanical Endurance Rating | 1,000,000 cycles (or 274 years @ 10 cycles per day) | 2,000,000 cycles (or 548 years @ 10 cycles per day) |
| Wiring Type | Pre-stripped wire leads (Line/Neutral) #14 AWG (Stranded), Ground screw | Pre-stripped wire leads (Line/Neutral) #12 AWG (Stranded), Ground screw |
| Testing and Code Compliance | UL498 / UL1310, CSA C22.2 #42, #223 (Canada and US) | UL498 / UL1310, CSA C22.2 #42, #223 (Canada and US) |
| Flammability | UL94 5VA | UL94 5VA |
| Environmental | Indoor installation only | Indoor installation only |
| Operating Temperature | 14F to 104F (-10C to 40C) | 14F to 104F (-10C to 40C) |
| Insert Voltage Output | Nominal 5VDC (+/- 5%) | Nominal 5VDC (+/- 5%) |
| Insert DC Protection | CLASS 2 - Current limiting and thermal shutdown protection | CLASS 2 - Current limiting and thermal shutdown protection |
| Insert Current Output | Constant current maximum 2.0A | Constant current maximum 2.0A |
